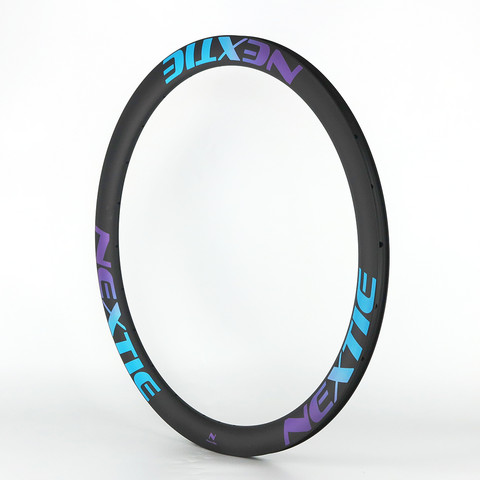

NXT45RC 700C" 45mm depth rim brake Road Clincher

Nextie bikes
NXT45RC 700C
NXT45RC 700C NXT45RC 700C NXT45RC 700C NXT45RC 700C

NXT45RC 45mm Depth 700C rim brake inner width 18mm

302,62 €
Including VAT. 25.5 %
Availability now 2 pcs
Delivery time 14 - 60 workdays

Premium Edition Carbon Fiber Road Bike Rim

Rim brake version

To compare with normal rims, the improvements of premium rims are as below.

1. The premium rims are manufactured by T700 + T800 carbon fibers materials with better High TG resin composite between carbon fibers;

2. 15% T800 + 85% T700 carbon fibers. T800 performs better rigidity and T700 performs better tenacity;

3. Graphene braking surface, heat dissipation shows a much better performance;

4. In aspect of technology, the layer-up system, carbon fibers are cut in angles of 30 degrees and 60 degrees. More complicated process to achieve improvements of stiffness and strength. It performs better impact resistance than normal rims with only one degree of 45;

5. We made a single mold to layer up the spoke bed wall. The flatness of rim channel surface significantly improved, which makes the thickness at each spoke hole completely consistent. Also, it effectively prevents the carbon loop of spoke hole wall from shifting;

6. Each of rim would be attached with a card showing the flatness and roundness. The flatness and roundness are controlled within (+/-0.15mm), better than normal (+/-0.25mm). It's quite easy to build wheels than normal versions;

7. Two years warranty;


Materiaali: Toray  T700

Size 700C width 30mm , inner 22mm, depth 30mm

Weight 470g

Max tension of spokes 130Kgf

ERD: 581mm

Spoke hole 4,5mm, nipple length 14/16mm

Assembly hole 7,5mm

Max tyre pressure 140 Psi

Road /Triathlon/TT/CX

Weight limit 120kg

2 years warranty



Length:
65 cm
Height:
13 cm
Width:
29 cm
Weight:
390 g
Reviews 0 reviews
