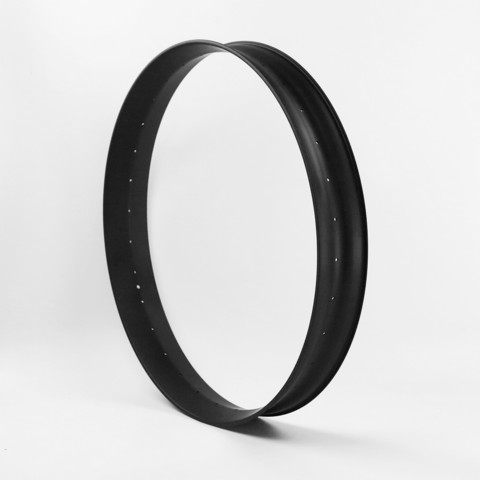

NXT26XS105 Xiphias 26" 105mm carbon rim, tubeless

• Item #: NXT26XS105 (PREMIUM)
•
• Material: Toray T700+T800 Carbon Fiber
•
• Rim Type: Clincher / Hookless
•
• Name: Xiphias (PREMIUM)
•
• Warranty: 3 Years

Dimension

• Size: 26"
•
• Axial Direction Angle: 10 degree
•
• BSD: 559mm
•
• Radial Direction Angle: 6 degree
•
• ERD: 544mm
•
• Spoke Bed Offset: +/-5mm
•
• Width: 105mm
•
• Spoke Hole Dia.: 4.5mm
•
• Depth: 17.5mm
•
• Valve Hole Dia.: 6.5mm (Presta)
•
• Weight: 580g+/-20g
•
• Assembly Hole Dia.: 7.5mm

Recommendation

• Tire Size: 4"+
•
• Max Spoke Tension: 130kgf
•
• Spoke Nipple Length: 14mm
•
• Weight Limit: 150kg
•
• Max Tire Pressure: 20psi/1.4bar. (Recommend 5-15psi / 0.4-1.1bar)

Appearance

• Weave: UD / 3K / 12K / Wave
•
• Finish: Matte / Glossy
•
• Note: Glossy is about 10g more than Matte, 12K or Wave weave is about 10g more than UD or 3K.

Application

• Trail / Dirt / Enduro / Snow / Sand / Bogs / Desert / Mud

Color Option

• Note: Color paint adds about 30g for each rim; Color # supports Pantone Color Chart; Decals adds about 10g for each rim accordingly.

Design Features

• - Width 105mm fits more forms of cycling and keeps riding in great stability;
•
• - Deep channel would help you easily install and take off a tire;
•
• - Small bead socket could lock tire tightly and help run tubeless perfectly;
•
• - Aero roof surface (triangle-like shape) could easily shed the dirt or mud, better to release weight during cycling;
•
• - Section of triangle's inherent feature of stability on rim design keeps rim in strong performance.
